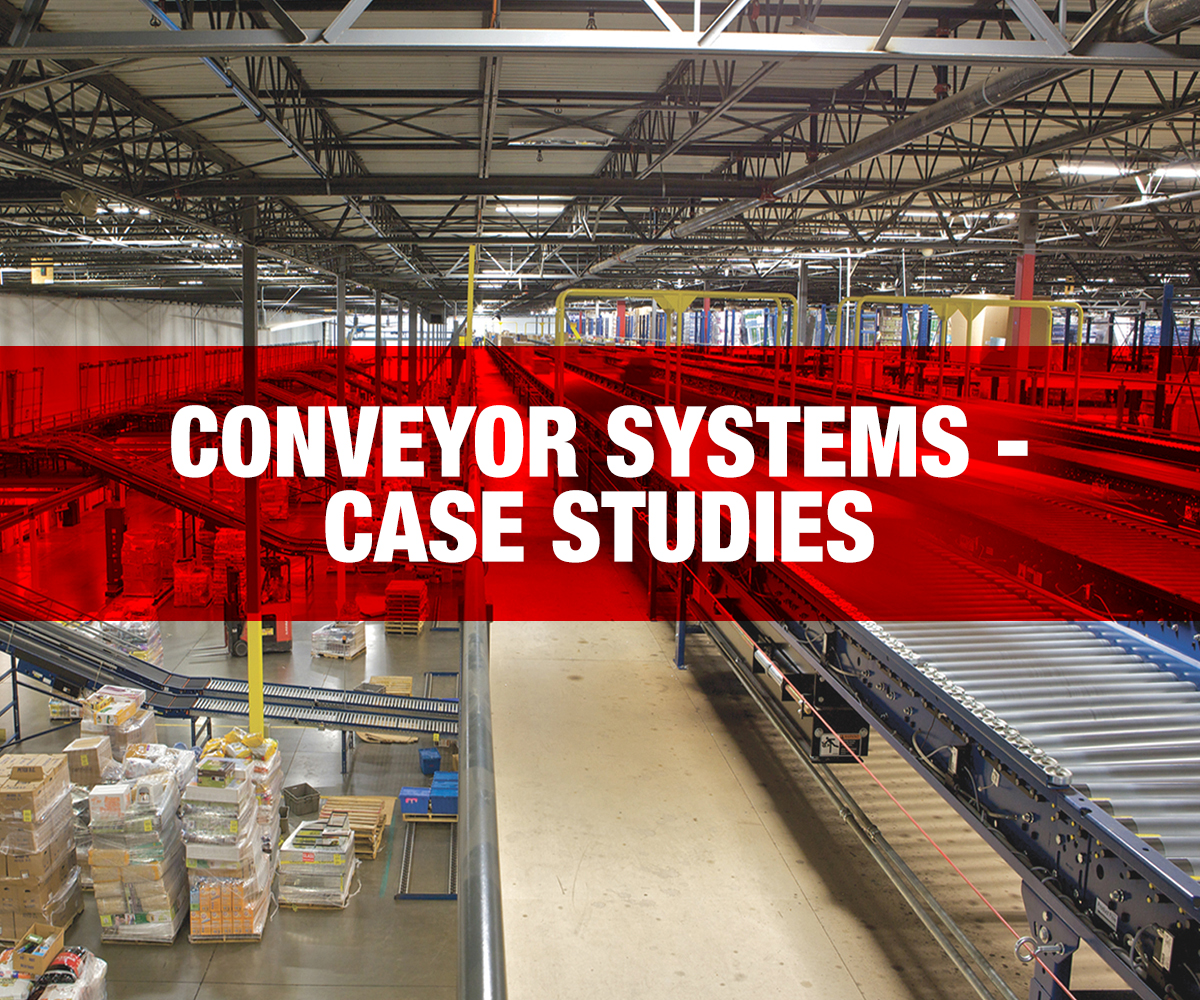

Conveyor & Storage Systems - Case Studies

Southern Glazer’s Wine & Spirits

The Problem:

SGWS had a huge problem with oddball picks. Their associates were required to retrieve these oddball picks from all levels of their 5 level pick modules 200-300 times a day and physically walk them to the main floor level. These cases could weigh up to 100 lbs. which created an ergonomic issue and became a safety risk for these associates.

The Solution:

• FHS, Inc. worked together with the Regional Group Services Engineer, to evaluate options for a safer operation.
• FHS, Inc. engineered, designed provided and installed a “Turn-Key” Vertical Conveyor System for both pick modules. SGWS wanted to maintain the footprint of both modules which required these conveyors to be installed inside their perimeter. FHS, Inc. provided all materials and construction work to located these units within the constraints of the modules.
• As a bonus to this operation, through very complex PLC controls, we provided SGWS with the ability to reverse the conveyors allowing the associates to not only retrieve the oddball cases but restock these areas as well.

Americo Manufacturing

The Problem:

Americo Manufacturing’s business was exploding which required them to install more manufacturing lines. Because of the space used by the new manufacturing lines, they needed additional storage for warehousing.

The Solution:

• FHS, Inc. worked together with owners, operations and warehouse executives to evaluate the existing space and design a way to achieve additional storage space in the existing building.
• Designed a solution that included a pre-fabricated mezzanine installed in an adjacent building.
• Designed a conveyor system and support structure to convey manufactured goods from the production floor across to the adjacent building and onto the new mezzanine.
• Provided the design, engineering, materials and installation of all conveyors, support structures and the 20,000 SF mezzanine.
• This resulted in Americo’s ability to utilize their existing facility without having to outsource or build new facilities, saving potential construction and utility costs.

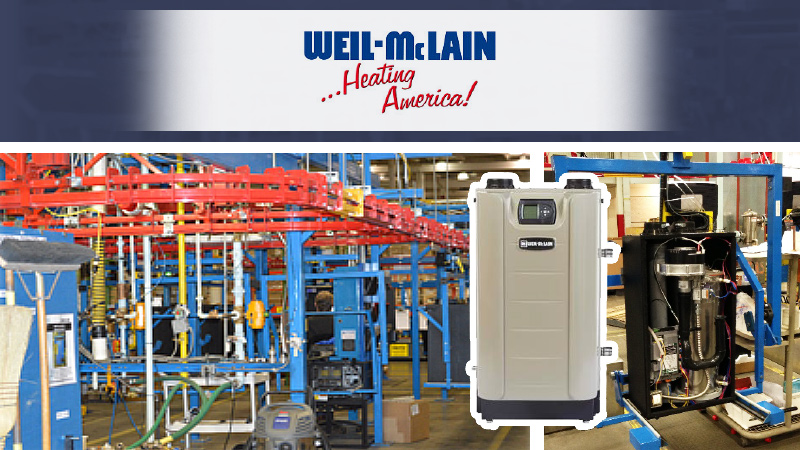

Weil-McLain

The Problem:

Weil-McLain developed a compact boiler for the residential market and needed an efficient way to assemble the units in a confined area.

The Solution:

• Worked together with Weil-McClain operations and engineering teams to solve their dilemma.
• Designed a solution that included a power and free automated assembly conveyor with smart tools, work stations, testing and load / unload stations.
• Developed PLC programming and HMI controls to allow tracking of units through system in real time and generate reports that are posted on large screen displays.
• We were able to design the system to fit in an unused area of the existing plant in a 15’ x 40’ space.
• Weil-McLain assembly line system has been in operation for over seven years producing 45 units per day at 99.9% assembly accuracy.
