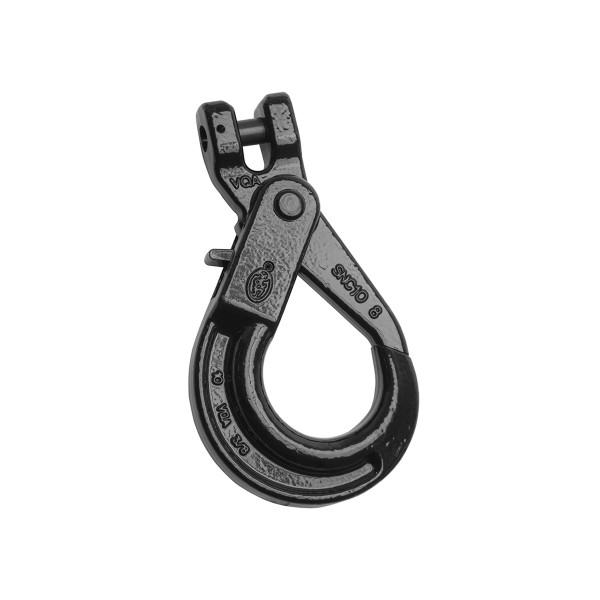

Peerless Peer-Lift Clevis Style Self-Locking Hook (Grade 80)

Peerless Peer-Lift Clevis Style Self-Locking Hook (Grade 80)

  • Proof tested at twice the working load limit.
  • Fatigue tested at 1.5 times the working load limit for 20,000 cycles.
  • Meet or exceed ASTM A952 and OSHA 1910 standards.
Categories: , Tags: , ,
Peerless Logo

Description

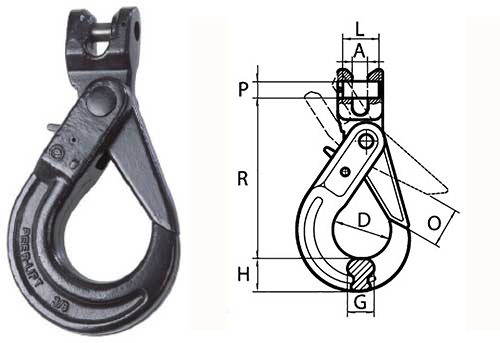

Peerless Peer-Lift Clevis Style Self-Locking Hook (Grade 80) Spec Drawing

Stock # Chain Size Dimensions Lbs. Per Each WLL (lbs)*
Black Inches mm A D G H O (min) R PxL
8498280 9/32-5/16 7-8 0.33 1.71 0.79 1.02 1.34 4.84 0.38 x 0.91 2.12 4,500
8498480 3/8 10 0.47 2.20 0.97 1.18 1.77 5.65 0.49 x 1.16 3.53 7,100
8498680 1/2 13 0.59 2.72 1.36 1.57 2.03 7.07 0.63 x 1.46 6.90 12,000
8498780 5/8 16 0.75 3.15 1.40 1.97 2.36 8.54 0.79 x 2.05 12.79 18,100

Replacement Latch Kits:

  • 9/32″- 8490299
  • 3/8″- 8490399
  • 1/2″- 8490499
  • 5/8″- 8490599

* WARNING: Working load limit is not to be exceeded.



All product warnings: Warnings Page
